Tipping trailer 2-axles

Standard version

  • 2 fixed axles (steering axle or following axle in option)
  • Drawbar with cross suspension
  • Suspension on the axles tandem
  • Large viewing grid in front wall with vertical round bars and
  • plexiglass cover plate
  • Loading space made of steel with a high elasticity limit
  • Bottom 5 mm / side 4 mm
  • Reinforced tp edge
  • Single top edge on models D14 and D16 S - M - XL
  • Profiled side walls with sloping and fully welded stakes
  • Steel sloping fenders on the loading platform
  • Steel rope hooks all around on the body and tailgate
  • Hydraulic rear door double acting from 1 part
  • 1 grain chute in the middle of the door
  • Galvanized ladder and bumper
  • Hydraulic tipping with oil from the tractor
  • Air brakes
  • Lighting
  • Swiveling hitching eyelet
  • Tires 1400 R 20
  • Sandblasted before painting
  • 2 component primer + 2 Componenten high quality lacquer
  • Legally permitted speed on public roads max. 40 km / h

Technical data

Type            Charge*Dimensions LxWxH*(mm)Volume waterVolume SAEBrakesAxleTipping cylinder (l)
D14 S
D14 M
D16 M
D16 XL
D16 LM
D16 LXL
D17 M
D17 L
D17 XL
D18 M
D18 XL
D19 XL
D19XXL
14000kg
14000kg
16000kg
16000kg
18000kg
18000kg
18000kg
18000kg
18000kg
20000kg
20000kg
20000kg
20000kg
5700x2300x1000
5700x2300x1200
6200x2300x1200
6200x2300x1500
6450x2300x1200
6450x2300x1500
6700x2300x1200
6700x2300x1400
6700x2300x1500
7200x2300x1200
7200x2300x1500
7700x2300x1500
7700x2300x1700
13
16
17
21
18
22,5
18,5
21,5
23
20
25
26,5
30
16
19
21
25
22
26
22,5
25,5
27
24
29
31
35
406x140
406x140
406x140
406x140
420x180
420x180
420x180
420x180
420x180
420x180
420x180
420x180
420x180
#130/10
#130/10
#130/10
#130/10
#150/10
#150/10
#150/10
#150/10
#150/10
#150/10
#150/10
#150/10
#150/10
27
27
27
27
35
35
37
37
37
37
37
49
49

*Load = technical load capacity indicated by DEZEURE. The legally permitted load can vary from country to country where the customer is located.
*All Diminsions container dimensions are measured internally.

*Volume SAE = volume water + content cup

*Deviating equipment / container dimensions on request

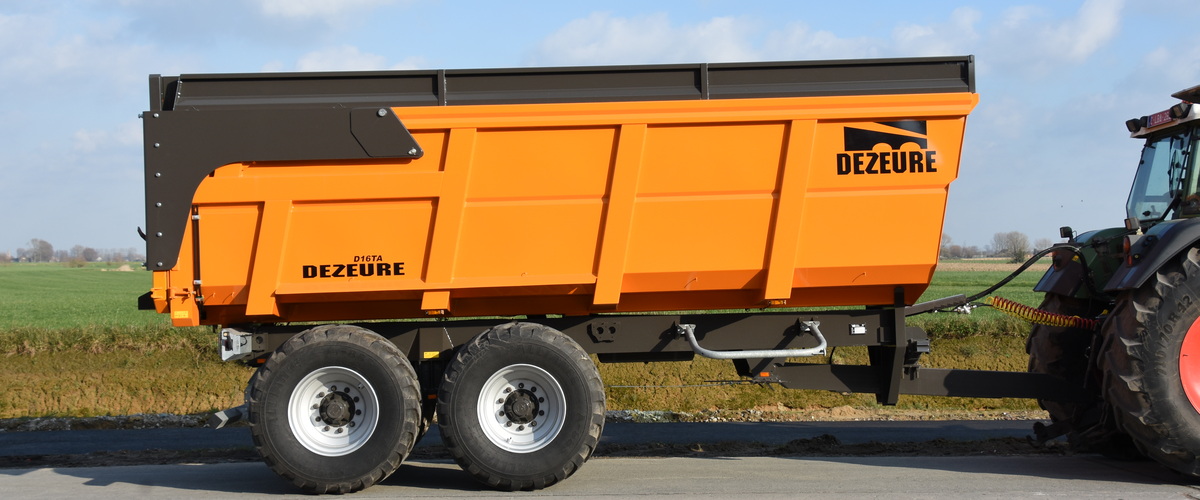

Pictures tipping trailers 2-axles
