2-AXLES 0+2

allowed mass



  • Technical + upon registration
  • When transporting at normal speed in fast traffic
  • Maximum allowed masse for:
    Singe tractor: 33 000 kg
    Tandem tractor: 37 000 kg

loading floor

  • Length: 6700
  • Width: 2500
  • Height: 890 at full load
  • Other dimensions possible
  • High quality hardwood floor 50 mm
  • Steel plate above the tires to limit the height

tyres



  • 8 tyres 235/75 R 17.5

standard version

  • AXLES SAF (assured quality!)
  • SUSPENSION
    Air suspension, extra stable.
  • LIGHTING
    Light equipment (for normal transport) in accordance with the road code + side lighting (LED). Reflective tape on the side and back. Front position lamps on rubber support.
  • BRAKES EBS brake system
    Hand brake
  • FINISCH
    To achieve optimum adhesion and protection, first a thorough blasting is carried out. 1 RAL color at the choice of the customer (except RAL 9007).
  • EQUIPMENT
    4 eyes on the load floor (2 front + 2 rear)
  • APPROVAL PVG ACCORDING TO THE LISTED MASSES

options

  • Loading floor 2750 wide
  • Loading floor 2950 wide
  • Loading floor +500 mm
  • Loading floor +1000 mm
  • Loading floor +1500 mm
  • Loading ramps 3000x700, 2 parts
  • Loading ramps 3500x700, 2 parts
  • Loading ramps 4500x700, 2 parts
  • Loading bridges 900 wide
  • Extension brackets 200 in hardwood 40 mm
  • Pit above the axles
  • Aluminum loading ramps
  • Coupling pin 3.5 ”interchangeable
  • 2 sides removable in wood
  • 2 sides removable in ALU
  • Following
  • 2 steered axles (Tridec)
  • Compact steering of the axles
  • Clutch disc 18T (Tridec)
  • Additional power for EBS at the traffic lights
  • Tires filled with nitrogen
  • Extra wheel
  • Loading ramps entirely in steel
  • Aluminum loading ramps ± 500 kg weight gain
  • Operation of the loading ramps with hydr. pneum. pump
  • Operating the ramps with electr. hydr. pump
  • Operation of the ramps with hand pump
  • Extra function to operate loading ramps at the back
  • 4 hazard signs with LED lighting, adjustable in width + two flashing lights
  • Power converter 12V-24V
  • All lighting in LED aluminum side walls (various options on request)
  • Automatic central lubrication EP-2 grease
  • Lifting and lowering valve
  • Load eye recessed and not recessed
  • Provision (base) for side tubes
  • Tube in side Ø 60 mm
  • Centering tube
  • Tubes for in centering tube
  • Floor in cargo 50 mm
  • Tool box
  • Work light
  • Metallizing
  • More than 1 RAL color (2nd color)
  • RAL 9007 (aluminum gray)
  • Examination
  • Delivery
  • Fill in document exceptional transport

greenstep



FAST, EASY & SECURE CHARGING
MAXIMAL USE LOADING FLOOR
LOWR OWN WEIGHT
20 % LESS USE OF FUEL

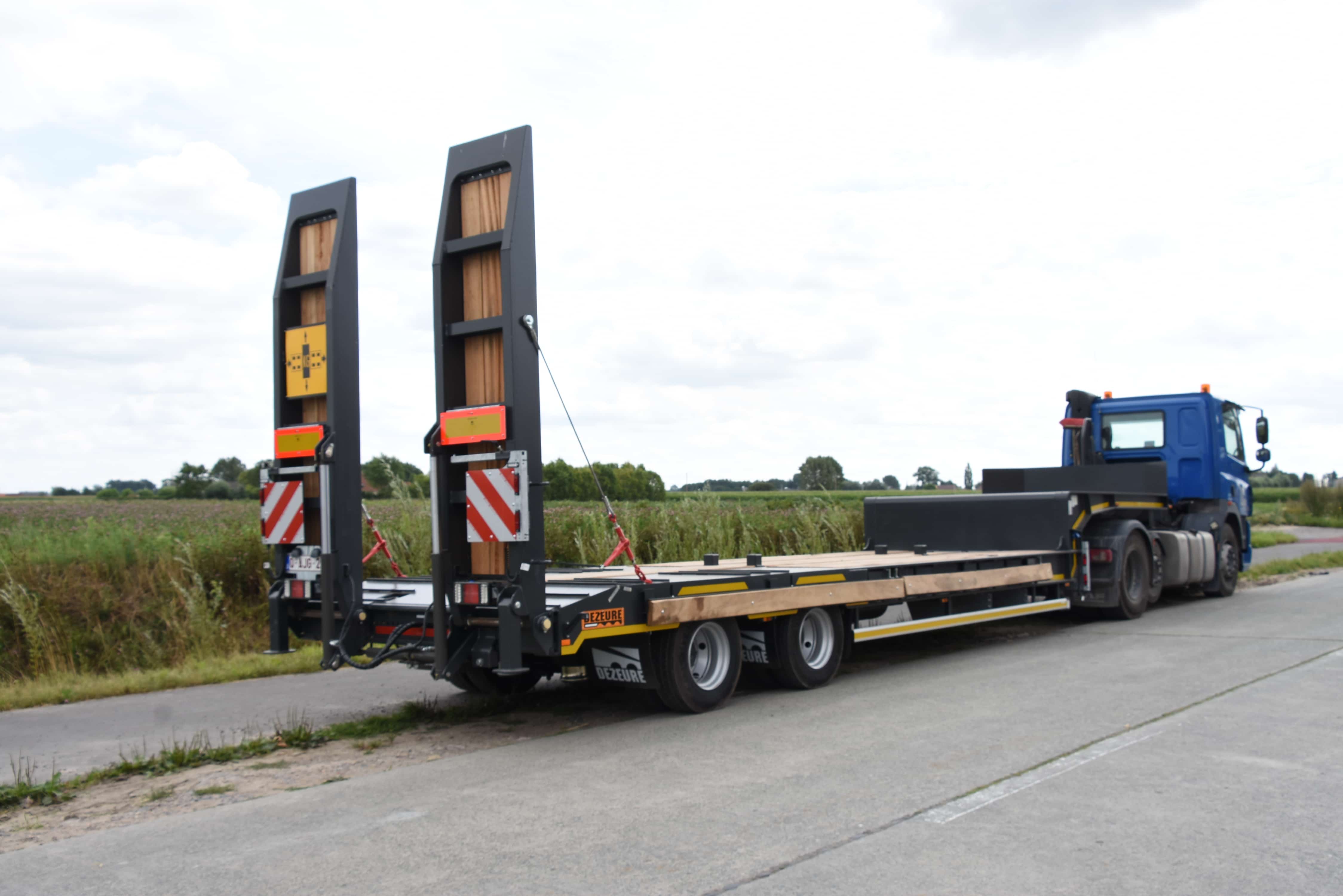

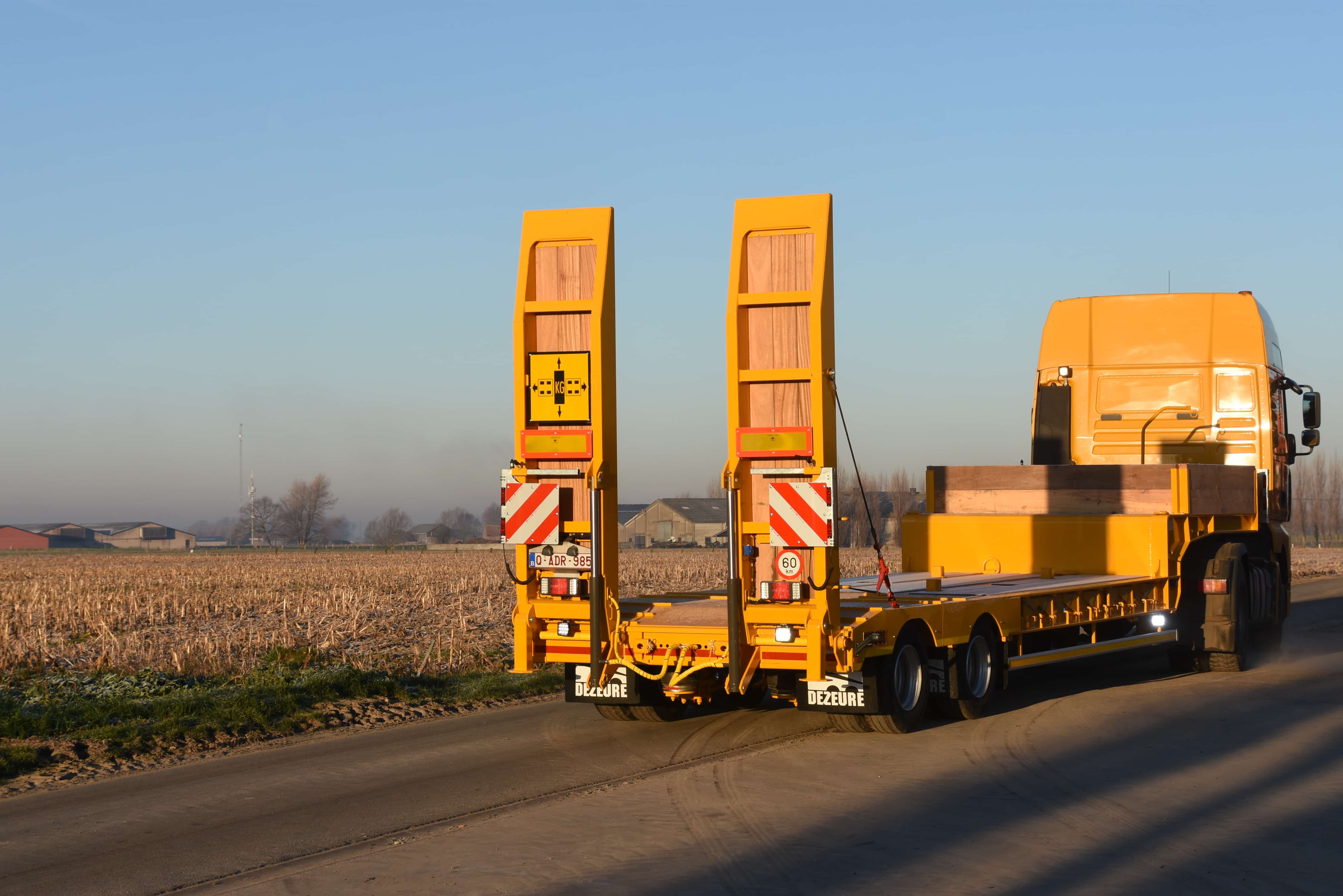

pictures low loader 2-AXLes 0+2
